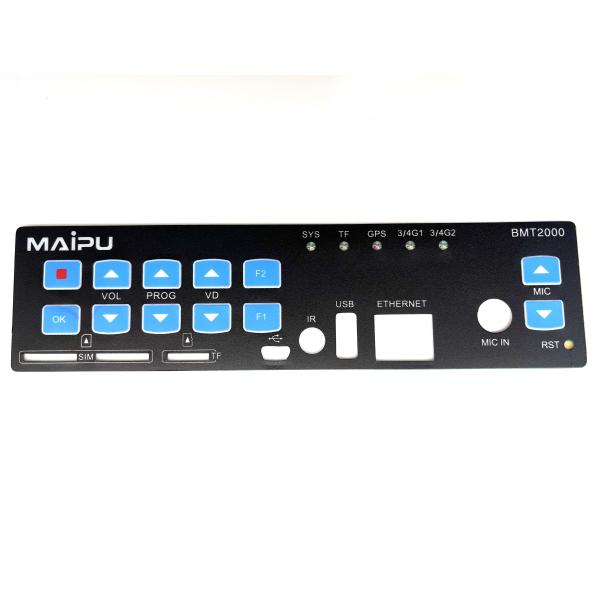

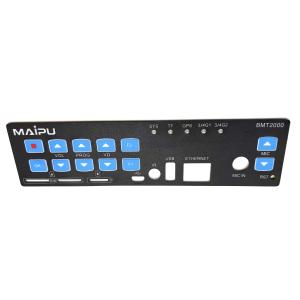

Polyester Top Printing PCB Membrane Keyboard With LED And Pressure Sensive Adhesive

A PCB Membrane Keyboard refers to a keyboard design that combines a printed circuit board (PCB) with a membrane switch technology. Here are the key details about this type of keyboard:

1. PCB Construction:

• The base of the keyboard is a rigid printed circuit board (PCB).
• The PCB provides a stable platform and houses the electrical connections.
• Conductive traces on the PCB detect the keystrokes.

2. Membrane Switch Overlay:

• Laid on top of the PCB is a flexible membrane switch layer.
• This membrane contains conductive rubber domes or switches that complete the circuit when pressed.
• The membrane provides a responsive, tactile feel for the keys.

3. Key Benefits:

• Durable and long-lasting construction with the PCB base
• Spill-resistant and easy to clean due to the membrane design
• Customizable key layouts and switch feel
• Cost-effective manufacturing compared to mechanical keyboards
• Compact and low-profile form factor

4. Design Variations:

• PCB Membrane keyboards can have different levels of customization.
• Some may have a simple membrane overlay, while others incorporate additional features like backlighting or custom key shapes.
• The PCB can also be designed with specialized features like integrated microcontrollers or connection interfaces.

5. Applications:

• Industrial and manufacturing equipment control panels
• Medical devices and laboratory instrumentation
• Kiosks, point-of-sale systems, and other public-facing interfaces
• Specialty keyboards for computers, gaming, or other applications
• Low-profile keyboards for thin, space-constrained designs

Specification:

Performance Index

More photos show :


About ShenZhen TaiDa Menbrane switch CO.,LTD

Taida are an OEM professional specializing in designing and manufacturing membrane switch ,graphic overlay and adhesive sticker/labels with with more than 15 years experience in Shenzhen of China which are widely used in industrial,electronics,household appliance,medical equipments.we have more than 500 different customers .and most of our customer come from USA ,EU ,UK ,middle east and other famous country of world wide.Taida can supply different kinds of Membrane switch based on each client's request .

Factory Strength:
Factory Area: Over 2000 Square meters
Employee :＞ 70
R＆D
Continued quality improvement ,professional Tech support and latest design
From our R＆D department for customers’ demand or samples
Manufacturing
Strong productivity and unified producing process to ensure the fastest delivery time.
QC/QA
20% Employee are QC/QA workers ,quality Guaranteed
Dispatch Department
Power dispatch ability to ensure shipping accuracy and speed
Sales ＆ Customers
Overall ,close and long-term service,No matter in saling and after-sales
Many customers show in our company from worldwide

Taida is a factory and was founded in the 2010 year in China, which focus on the professional design and manufacture of Membrane Switch and Graphic overlays (including different many kinds membrane switch and graphic overlay ,such like LED ,FPC circuit ,waterproof and tactile ,PMMA ,protective film and so on )manufacturers,

Experience:

Taida and engineers have Highly over 15 years experienced on Membrane switch and graphic overlay designs, 500+ customers from worldwide such like USA,UK ,Germany and others , 1000+ new designs per year

Factory Strength and Production Capacity:

Over 2000 square meters of modern plant, spacious and bright clean workshop; more than 25 full Automatic and Semi-Automatic printing machine and other professional Automation equipment,such like testing machine ,UV machine and so on , Taida’ capability has reached 300, 000PCS/month in a very short period since company established.

Quality Control and Ensure :

Taida has got certification of ISO9001: 2000, and also the accreditation for RoHS ,REACH ,UL SGS to meet customer′s requirements.All workers are fully trained before going to production line.and Ensure 100% testing and inspecting before shipping .

Speed & Efficiency:

Concept to Design: < 3 business days

Goods lead time : 12-15 days

Rapid Prototyping: 4-7 days

Overseas Manufacturing

Utilized for larger production volumes and to ensure we can offer the most competitive pricing and Fast lead time to our customers
